Sample Application

The mongo_objects source code as well as the source distribution package include a sample Flask application that demonstrates many common usage patterns.

Starting The Sample Application

The sample/run-sample-app shell script makes the following assumptions:

  • The bash shell is available at /bin/bash.

  • python3 and pip3 are available on the path with access to the Internet.

  • MongoDB is installed as mongod but not running.

  • The sample directory is writable.

The script performs the following actions:

  • Creates a Python 3 virtual environment in the sample/venv directory and installs the required modules as listed in sample/requirements.txt.

  • Creates a sample/db directory and starts mongod in unsecured mode against that directory. To override this step and use a different MongoDB instance, provide the connect string in the MONGO_CONNECT_URI environment variable.

  • Starts flask running the sample/mongo_objects_sample.py sample application module

  • Shuts down mongod when flask terminates.

Press Control-C to terminate flask and end the script. For example:

% sample/run-sample-app
created new virtual environment for mongo_objects sample app
activated mongo_objects sample app virtual environment
Collecting Flask
Collecting Flask-PyMongo
Collecting Flask-WTF
Collecting MarkupSafe
Collecting pymongo
Collecting WTForms
Collecting Werkzeug>=3.0.0 (from Flask)
Collecting Jinja2>=3.1.2 (from Flask)
Collecting itsdangerous>=2.1.2 (from Flask)
Collecting click>=8.1.3 (from Flask)
Collecting blinker>=1.6.2 (from Flask)
Collecting dnspython<3.0.0,>=1.16.0 (from pymongo)
...
Installing collected packages: MarkupSafe, itsdangerous, dnspython, click, blinker, WTForms, Werkzeug, pymongo, Jinja2, Flask, Flask-WTF, Flask-PyMongo
Successfully installed Flask-3.0.3 Flask-PyMongo-2.3.0 Flask-WTF-1.2.1 Jinja2-3.1.4 MarkupSafe-2.1.5 WTForms-3.1.2 Werkzeug-3.0.3 blinker-1.8.2 click-8.1.7 dnspython-2.6.1 itsdangerous-2.2.0 pymongo-4.7.2
installed required modules for mongo_objects sample app virtual environment
Started MongoDB PID 66702
* Serving Flask app 'mongo_objects_sample'
* Debug mode: on
WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
* Running on http://127.0.0.1:5000
Press CTRL+C to quit
* Restarting with stat
* Debugger is active!
* Debugger PIN: 942-992-575
^CStopped MongoDB

Application Overview

The sample Flask application manages ticket sales to imaginary events.

There are two modes. In admin mode, you manage events while in customer mode you may view events and “purchase” tickets. Use the dropdown menu in the navigation bar to switch between modes.

The data for the entire application is stored in a single MongoDB collection named events in the mongo_objects_sample database. Each event including related information like venue location, types of tickets and tickets sold is stored as a single MongoDB document.

We recommend installing the MongoDB Compass tool to inspect the documents managed by mongo_objects.

MongoUserDict: Scheduling An Event

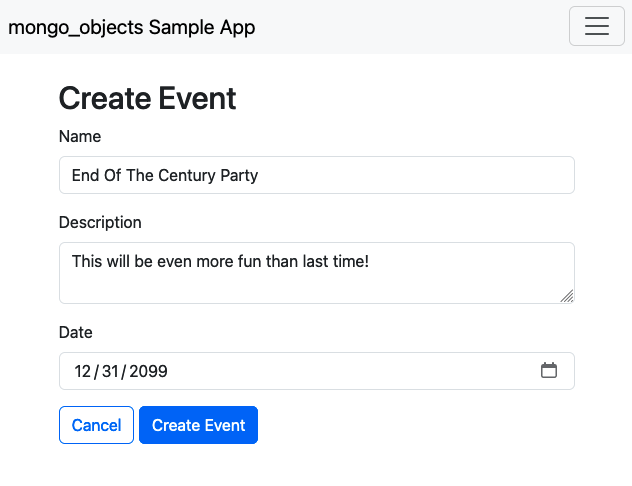

Events are stored as MongoUserDict subclasses called Event. Use admin mode to create your first event as follows:

_images/create-event.png

Now use Compass to view the contents of the events collection. There should be one document similar to the following:

{
    "_id": "663c54bbeba88ab288f3bd3d",
    "name": "End Of The Century Party",
    "description": "This will be even more fun than last time!",
    "eventDate": "2099-12-31T00:00:00.000Z",
    "_updated": "2024-05-09T04:44:43.030Z",
    "_created": "2024-05-09T04:44:43.030Z"
}

This is a typical MongoDB document dictionary, although you’ll notice MongoUserDict helpfully added _created and _updated timestamps to the document when it was saved.

If you look at the event details page in the sample app, you’ll see a URL similar to http://127.0.0.1:5000/admin-event-detail/663c54bbeba88ab288f3bd3d. The unique number in the URL is just the MongoDB ObjectId. The MongoUserDict.id() and MongoUserDict.load_by_id() methods to make it easy to locate documents by their ObjectId.

Because events are actually represented using a MongoUserDict subclass named Event, we have added our own methods to assist with the event workflow. displayDate() provides consistent date formatting while isSoldOut() provides a single calculation for ticket availability.

By passing an Event object to another function or even to a Jinja template, not only the event data but also all these methods are available as well.

MongoSingleProxy: Adding A Venue

The venue location is stored as a simple subdocument dictionary within the parent event document. We use a MongoSingleProxy subclass named Venue to manage this data structure.

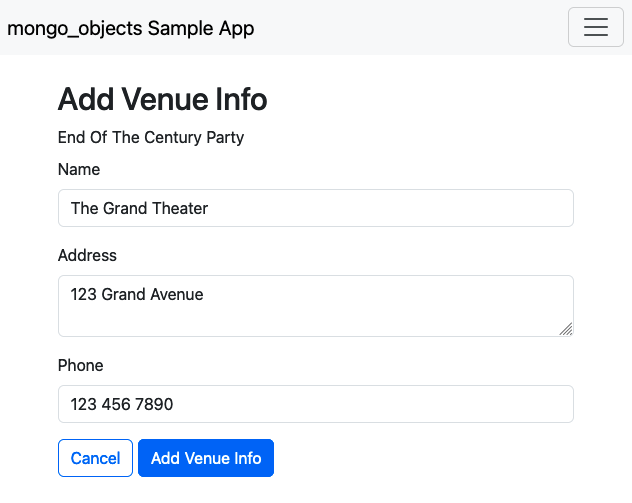

Use the admin mode to add venue information to the event as follows:

_images/add-venue.png

Check the MongoDB document with Compass:

{
    "_id": "663c54bbeba88ab288f3bd3d",
    "name": "End Of The Century Party",
    "description": "This will be even more fun than last time!",
    "eventDate": "2099-12-31T00:00:00.000Z",
    "_updated": "2024-05-09T07:07:18.207Z",
    "_created": "2024-05-09T04:44:43.030Z",
    "venue": {
        "name": "The Grand Theater",
        "address": "123 Grand Avenue",
        "phone": "123 456 7890"
    }
}

You’ll notice that the _updated field has indeed been updated to reflect the last document save time.

There’s also a new venue dictionary within the main document. This represents the Venue proxy object. The venue name came from the container_name in the class definition.

If there are any venue-specific methods, we could include them in the Venue class instead of cluttering up Event.

Since the data for each proxy object only exists in the parent MongoDB document, the parent document must be loaded before the proxy is available. We’ve included a helpful Event.getVenue() method to return the Venue proxy object from a Event already loaded into memory.

Each proxy object has a unique ID that includes the parent document ObjectId. There’s an Event.loadVenueById() class method that parses the venue ID, loads the correct Event document and returns the appropriate Venue proxy object.

MongoDictProxy: Defining Ticket Types

For “one-to-many” relationships, SQL statements require table joins to connect the information. In No-SQL databases like MongoDB, it is more efficient to simply include the “many” items as multiple subdocuments within the same primary document.

The MongoDictProxy class manages a single dictionary container that in turn holds multiple subdocument dictionaries of the same type.

In our sample app, for example, each event may have multiple ticket types for sale. Instead of a separate “ticket type” collection, all ticket types are included as TicketType subdocuments within the main Event object.

To illustrate this functionality, use the admin mode to add three ticket types to our event.

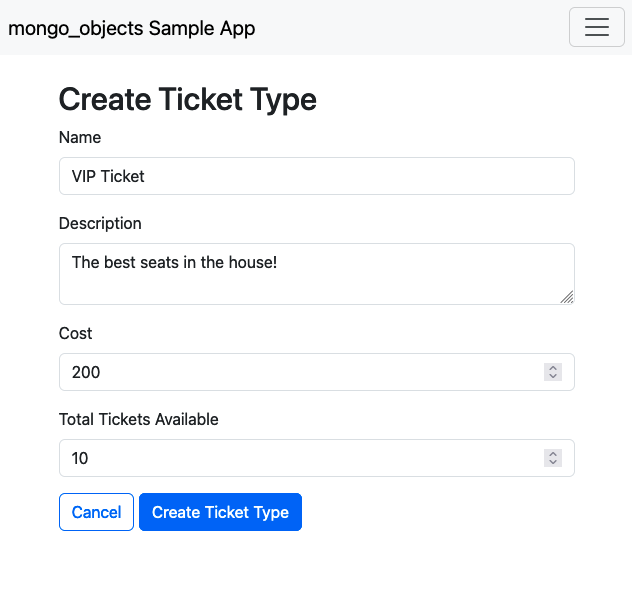

VIP tickets:

_images/add-ticket-type-1.png

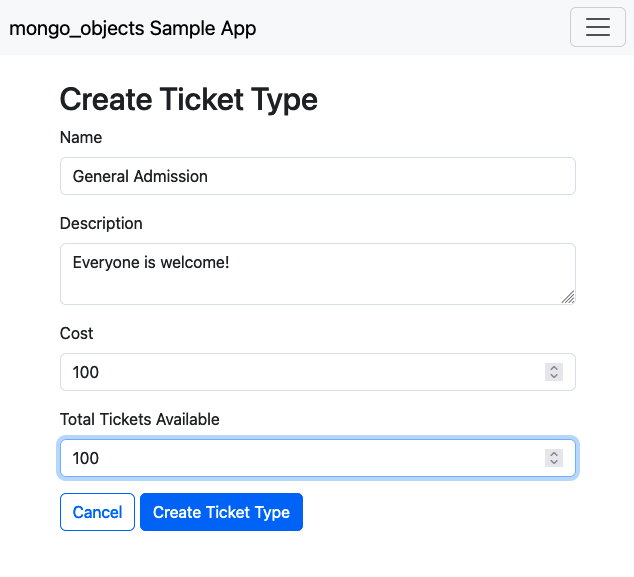

General admission:

_images/add-ticket-type-2.png

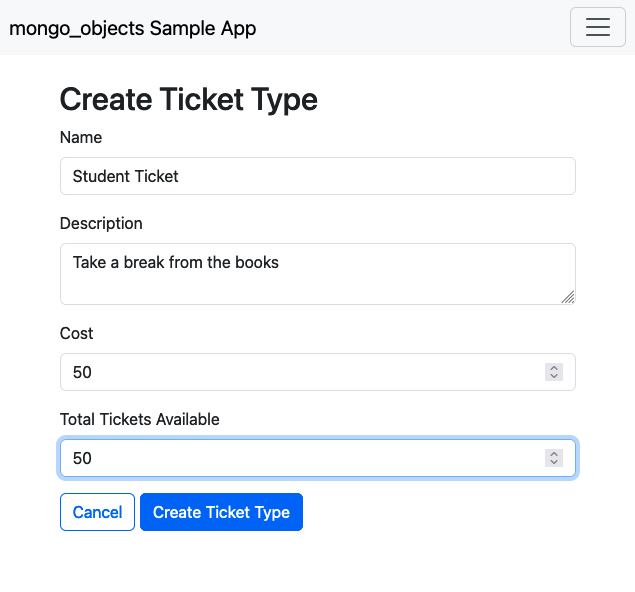

Discounted student tickets:

_images/add-ticket-type-3.png

Use MongoDB Compass to check the document content:

{
    "_id": "663c54bbeba88ab288f3bd3d",
    "name": "End Of The Century Party",
    "description": "This will be even more fun than last time!",
    "eventDate": "2099-12-31T00:00:00.000Z",
    "_updated": "2024-05-09T07:21:59.145Z",
    "_created": "2024-05-09T04:44:43.030Z",
    "venue": {
        "name": "The Grand Theater",
        "address": "123 Grand Avenue",
        "phone": "123 456 7890"
    },
    "_last_unique_integer": 3,
    "ticketTypes": {
    "1": {
        "name": "VIP Ticket",
        "description": "The best seats in the house!",
        "cost": 200,
        "ticketsTotal": 10
    },
    "2": {
        "name": "General Admission",
        "description": "Everyone is welcome!",
        "cost": 100,
        "ticketsTotal": 100
    },
    "3": {
        "name": "Student Ticket",
        "description": "Take a break from the books",
        "cost": 50,
        "ticketsTotal": 50
    }
    }
}

The biggest change is the new ticketTypes dictionary. The name came from the container_name attribute of the TicketType class.

The ticketTypes dictionary itself contains three dictionaries, one for each of our TicketType proxy objects. The keys for each dictionary were auto-assigned by MongoDictProxy and have nothing to do with the content of the subdocument. Even if the content changes, the key remains the same.

A _last_unique_integer value has also been added automatically to track on a per-document basis the last proxy ID value that was issued.

Of course, the _updated timestamp was also updated.

If you use the admin mode to explore ticket type details, you’ll see a URL like http://127.0.0.1:5000/admin-ticket-detail/663c54bbeba88ab288f3bd3dg1. Each proxy object has a unique ID consisting of the document ObjectId plus the proxy subdocument key. g is used as a URL-safe, non-hexidecimal separator.

Each proxy object provides a id() method that constructs the unique ID. MongoUserDict provides load_proxy_by_id() to parse a proxy object ID, load the correct parent document and return the appropriate subdocument object. In fact, our Event class method loadTicketTypeById() just calls load_proxy_by_id() to locate and return TicketType objects.

Once an Event object is loaded, getTicketTypes() has been included to call MongoUserDict.get_proxies() and return a list of all TicketType proxies. The method getTicketType() can be called to create a proxy for a single ticket type based on the key.

MongoListProxy: Selling Tickets

Another pattern for saving “one-to-many” subdocuments in the parent document is to use a list as the container. MongoListProxy supports using lists as a container object.

Our sample app uses a MongoListProxy subclass called Ticket to represent each ticket sold.

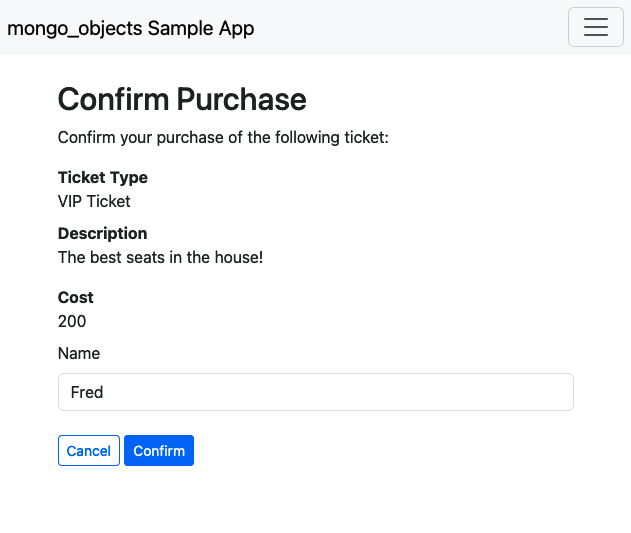

Use the customer mode of the sample app to purchase a VIP ticket to our end-of-the-century party.

_images/purchase-ticket.png

Let’s look at the actual data with Compass:

{
    "_id": "663c54bbeba88ab288f3bd3d",
    "name": "End Of The Century Party",
    "description": "This will be even more fun than last time!",
    "eventDate": "2099-12-31T00:00:00.000Z",
    "_updated": "2024-05-09T08:56:25.171Z",
    "_created": "2024-05-09T04:44:43.030Z",
    "venue": {
        "name": "The Grand Theater",
        "address": "123 Grand Avenue",
        "phone": "123 456 7890"
    },
    "_last_unique_integer": 4,
    "ticketTypes": {
        "1": {
            "name": "VIP Ticket",
            "description": "The best seats in the house!",
            "cost": 200,
            "ticketsTotal": 10
        },
        "2": {
            "name": "General Admission",
            "description": "Everyone is welcome!",
            "cost": 100,
            "ticketsTotal": 100
        },
        "3": {
            "name": "Student Ticket",
            "description": "Take a break from the books",
            "cost": 50,
            "ticketsTotal": 50
        }
    },
    "tickets": [
        {
        "name": "Fred",
        "ticketTypeKey": "1",
        "issued": "2024-05-09T08:56:25.171Z",
        "_sdkey": "4"
        }
    ]
}

The major change is the new tickets list containing a single subdocument dictionary representing the ticket we just purchased for Fred.

Each MongoDictProxy and MongoListProxy proxy object is tracked by a key. Since lists don’t natively use keys, a _sdkey (short for subdocument key) value has been added to the dictionary in the tickets list.

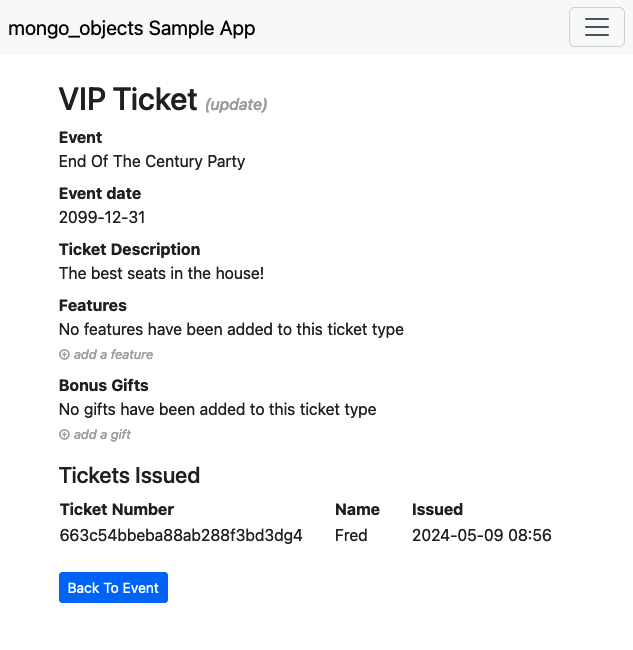

This key value is used when constructing the full proxy ID. In fact, if you switch back to admin mode and look at the VIP tickets detail page, you’ll see that Fred’s ticket number is just the proxy ID.

_images/vip-ticket-detail-1.png

The key is also used to track the subdocument dictionary within the list. If the list is modified, MongoListProxy will use the key to locate the new index of the subdocument dictionary in the list.

Because a new key has been issued, _last_unique_integer has been updated as well as the _updated timestamp.

PolymorphicMongoDictProxy: Ticket Benefits

It to sometimes convenient to store similar but not identical types of information within the same container. All mongo_objects proxy classes have polymorphic versions that will return different objects from the same container based on an identifier.

Our sample app uses a tree of PolymorphicMongoDictProxy subclasses to track the benefits associated with each ticket type. Some benefits are considered intangible features like a front row seat or unobstructed view. Other benefits are tangible gifts like free popcorn or a gift bag.

This data structure is defined as follows:

class Benefit( mongo_objects.PolymorphicMongoListProxy ):
    container_name = 'benefits'
    proxy_subclass_map = {}

class Feature( Benefit ):
    proxy_subclass_key = 'ft'

class Gift( Benefit ):
    proxy_subclass_key = 'gt'

The Benefit base class defines the container_name that the two subclasses will share. The Feature and Gift subclasses each define a unique proxy_subclass_key value that PolymorphicMongoDictProxy uses to decide which class to instantiate.

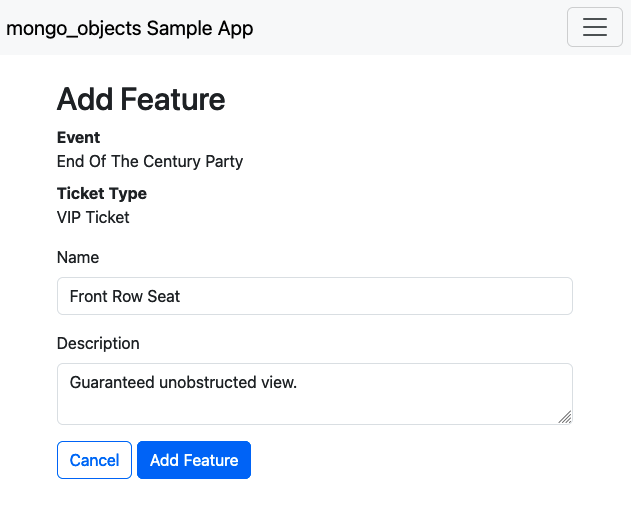

Use admin mode to add a feature to the VIP ticket type:

_images/add-feature.png

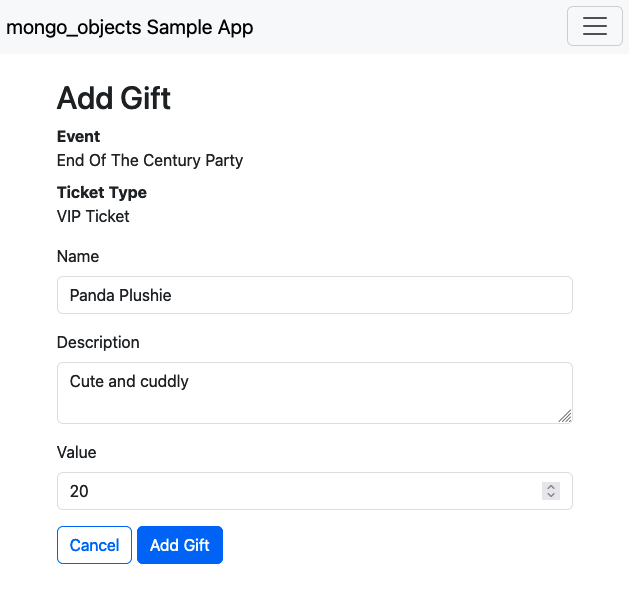

Now add a gift to the VIP ticket type:

_images/add-gift.png

Let’s look at the data:

{
    "_id": "663c54bbeba88ab288f3bd3d",
    "name": "End Of The Century Party",
    "description": "This will be even more fun than last time!",
    "eventDate": "2099-12-31T00:00:00.000Z",
    "_updated": "2024-05-09T09:38:22.027Z",
    "_created": "2024-05-09T04:44:43.030Z",
    "venue": {
        "name": "The Grand Theater",
        "address": "123 Grand Avenue",
        "phone": "123 456 7890"
    },
    "_last_unique_integer": 6,
    "ticketTypes": {
    "1": {
        "name": "VIP Ticket",
        "description": "The best seats in the house!",
        "cost": 200,
        "ticketsTotal": 10,
        "benefits": [
            {
            "name": "Front Row Seat",
            "description": "Guaranteed unobstructed view.",
            "_psckey": "ft",
            "_sdkey": "5"
            },
            {
            "name": "Panda Plushie",
            "description": "Cute and cuddly",
            "value": 20,
            "_psckey": "gt",
            "_sdkey": "6"
            }
        ]
    },
    "2": {
        "name": "General Admission",
        "description": "Everyone is welcome!",
        "cost": 100,
        "ticketsTotal": 100
    },
    "3": {
        "name": "Student Ticket",
        "description": "Take a break from the books",
        "cost": 50,
        "ticketsTotal": 50
    }
    },
    "tickets": [
        {
        "name": "Fred",
        "ticketTypeKey": "1",
        "issued": "2024-05-09T08:56:25.171Z",
        "_sdkey": "4"
        }
    ]
}

The “VIP Ticket” subdocument in the tickets dictionary now has a benefits list containing two subdocuments of its own. mongo_objects proxy objects support nesting as many levels as you like and in any order. In this case, a MongoListProxy is nested within a MongoDictProxy.

The method MongoUserDict.id() builds IDs for nested proxies and the class method MongoUserDict.load_proxy_by_id() loads nested proxies. This functionality is used to implement Event.loadBenefitById().

If you update the Front Row Seat feature added above, you’ll see an example of a nested proxy ID in the URL, for example, http://127.0.0.1:5000/admin-update-feature/663c54bbeba88ab288f3bd3dg1g5.

Notice that each subdocument has a _psckey value that matches the proxy_subclass_key value of the Benefit subclass to be instantiated for that particular subdocument.

There’s an important distinction to observe when calling get_proxies() for polymorphic proxies:

  • If you call the base class, you will get all proxies in the container, each with the correct class. In the example above Benefit.get_proxies() will return a list with two objects, one Feature and one Gift.

  • If you call a subclass, you will only get proxies of that type. For example, Feature.get_proxies() will return a list containing a single Feature object containing the Front Row Seat subdocument.

That’s A Wrap

Take a closer look at the sample/mongo_objects_sample.py to see the interplay between MongoUserDict parent documents and the three subdocument proxy types.

Observe some commong coding patterns. For example, since proxy objects can only exist after the parent document is loaded, proxy loading methods like loadBenefitById(), loadTicketTypeById() and loadVenueById() are usually class methods of the parent document class Event.

Likewise, proxy creation method like getTicket(), getTickets(), getTicketsByType(), getTicketType(), getTicketTypes() and getVenue() are placed in the parent document class as well.

Refer to the rest of the documentation for information on other features like PolymorphicMongoUserDict polymorphic documents.
